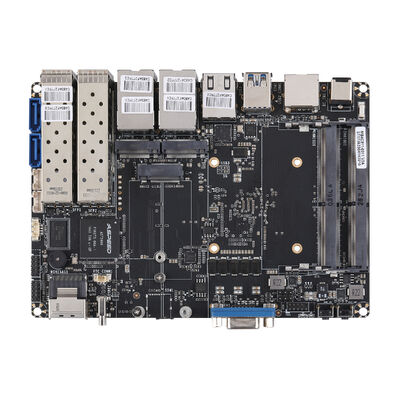

Intel Atom C3758R RoHS Firewall Motherboard 4x 10G SFP+ 5x 2.5G LAN
| MOQ: | 1PCS |
| Standard Packaging: | Netural Box |
| Delivery Period: | 2~5 days |
| Payment Method: | T/T,Western Union,Paypal,Credit Card |
| Supply Capacity: | 5000PCS/Month |
Detail Information
Place of Origin
China
Brand Name
Kettop
Certification
CE,RoHS
Model Number
MB4C911-C3758R
Size:
165 X 115mm
CPU:
Intel Atom C3758R, Denverton, 8 Cores, 8 Threads, 2.4GHz, 16M Cache, No Integrated Graphics, TDP: 26W.
BIOS:
UFFI
Memory:
2 X SO-DIMM DDR4 2133MHz SDRAM Up To 64GB
Lan:
5 X Intel I225-V/I226-V 2.5 Gigabit LAN
SFP:
4 X 10G SFP
Highlight:
RoHS Firewall Motherboard
,Firewall Motherboard
,2.2GHz oem motherboard manufacturers
Product Description
MB4C911-C3758R Intel Atom C3758R Industrial Mainboard 4x 10G SFP+ 5x 2.5G LAN
| Description | |
|---|---|
| CPU | Intel Atom C3758R, Denverton, 8 Cores, 8 Threads, 2.4GHz, 16M Cache, No Integrated Graphics, TDP: 26W. |
| Memory | 2 x SO-DIMM DDR4 2133MHz SDRAM Up to 64GB |
| Dimension | 165 x 115mm |
| Chipset | By CPU |
| Core Number | 8 |
| Max. Speed | 2.2GHz |
| BIOS | UFFI |
| Lan Chipset | 4 x 10G SFP , 5 x Intel I225-V/I226-V 2.5 Gigabit LAN |
| Expansion Slot | 2 x M.2 for SSD (M key, Type: 2280, PCIe 3.0 x 2) |
| 1 x M.2 for 4G/5G (B key, Type: 3042/3052) | |
| AutoStart Jumper | 0 |
| GPIO | No |
| SIM Slot | 1 |
| Front I/O | |
| Power Button | 1 x Power Button, 1 x Reset Button |
| LED | 1 x Power LED, 1 x HDD LED |
| VGA | 1 |
| SIM Cark Slot | 1 |
| Type C | 1 x Type C (USB 3.0) |
| Mini SAS | 1 x Mini SAS (SFF8087) |
| Rear I/O | |
| DC-IN | 1 |
| Serial Port | 1 x RS-232 (RJ-45) |
| Ethernet | 5 |
| SFP | 4 x 10G SFP |
| USB | 1 x USB 3.0, 1 x USB 2.0 |
| Other | |
| Power Requirements | 12V DC in, 5.5mm/2.5mm |
| Accessories | Cable for HDD |
| Operating Temperature | 0-50 ℃ |
| Max. Data Transfer Rate | SATA 3.0 (6.0Gb/S) |
| OS Support | |
| OS | win dows 10, Linux, pfsense etc. |
Product Images & Interface
Available CPU Options
- C3338R: Intel Atom C3338R, Denverton, 2 Cores, 2 Threads, 1.8GHz (Turbo up to 2.2GHz), 4M Cache, No Integrated Graphics, TDP: 10.5W.
- C3558: Intel Atom C3558, Denverton, 4 Cores, 4 Threads, 2.2GHz, 8M Cache, No Integrated Graphics, TDP: 16W.
- C3558R: Intel Atom C3558R, Denverton, 4 Cores, 4 Threads, 2.4GHz, 8M Cache, No Integrated Graphics, TDP: 17W.
- C3758: Intel Atom C3758, Denverton, 8 Cores, 8 Threads, 2.2GHz, 16M Cache, No Integrated Graphics, TDP: 25W.
- C3758R: Intel Atom C3758R, Denverton, 8 Cores, 8 Threads, 2.4GHz, 16M Cache, No Integrated Graphics, TDP: 26W.
- C3808: Intel Atom C3808, Denverton, 12 Cores, 12 Threads, 2.0GHz, 12M Cache, No Integrated Graphics, TDP: 25W.
- C3908: Intel Atom C3908, Denverton, 16 Cores, 16 Threads, 1.7GHz, 16M Cache, No Integrated Graphics, TDP: 25W.
- C3958: Intel Atom C3958, Denverton, 16 Cores, 16 Threads, 2.0GHz, 16M Cache, No Integrated Graphics, TDP: 31W.
Product Advantages
- Extreme Networking Density: Equipped with four 10GbE SFP+ ports and five Intel 2.5GbE LAN ports, providing massive bandwidth for high-speed data transmission and complex network routing.
- Robust Processing Power: Powered by the Intel Denverton Atom C3758R processor, specifically optimized for low-power consumption and high-reliability server-grade performance.
- Massive Memory Capacity: Supports dual-channel DDR4 SDRAM up to 64GB, ensuring smooth multitasking and stable performance for memory-intensive virtualization and security tasks.
- Flexible Expansion & Storage: Features dual M.2 PCIe slots along with Mini SAS and SATA 3.0 interfaces, offering versatile high-speed storage configurations for various industrial needs.
- Wide OS Compatibility: Fully compatible with professional networking and server operating systems, including win dows 10, Linux, and pfSense for advanced firewall builds.
Application Fields
- Network Security & Firewalls: Ideal for building high-throughput hardware firewalls, VPN gateways, and Unified Threat Management (UTM) appliances.
- Edge Computing & Data Centers: Serves as a compact yet powerful node for edge data processing, traffic monitoring, and localized cloud services.
- Industrial Automation Control: Provides a stable communication backbone for smart factories requiring high-speed connectivity between sensors, controllers, and management servers.
- SD-WAN & Network Management: Perfect for Software-Defined Wide Area Networks (SD-WAN) and advanced routing solutions in corporate or industrial environments.
