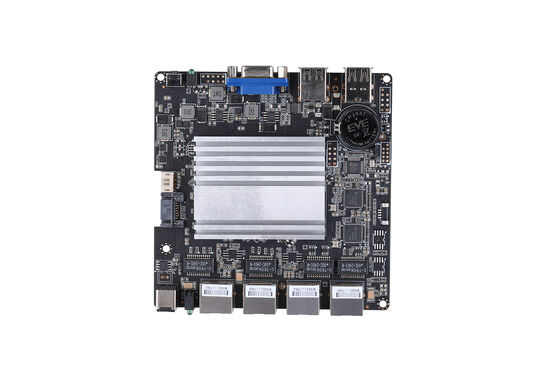

J1900 Mini ITX Firewall Motherboard Quad Intel LAN J1900 CPU 120mm
| MOQ: | 1PCS |
| Standard Packaging: | Netural Box |
| Delivery Period: | 2~5 days |
| Payment Method: | T/T,Western Union,Paypal,Credit Card |
| Supply Capacity: | 5000PCS/Month |
J1900 Firewall Motherboard
,Firewall Motherboard 120mm
,Windows 7 industrial motherboard manufacturers
MB2J401-J1900 Mini ITX Motherboard Quad Intel LAN, J1900 CPU
| Description | |
|---|---|
| CPU | Intel Bay trail Processor Celeron J1800, Celeron J1900, Celeron N2920, Celeron N2930, Pentium N3540. |
| Memory | 1 x DDR3L SO-DIMM Socket(Up to 8G, 1333/1600MHz) |
| Dimension | 120 x 120mm |
| Chipset | By CPU |
| Core Number | By CPU |
| Max. Speed | By CPU |
| BIOS | UFFI |
| Lan Chipset | 4 x Intel I211-AT/I210-AT Gigabit LAN |
| Expansion Slot | 1 x Mini PCIe, Full-length Mini PCIe for 4G, Half-length Mini PCIe for Wi-Fi by Default (Only for USB Device) |
| 1 x Full-length Mini PCIe for SSD | |
| GPIO | No |
| SIM Slot | 1 |
| AutoStart Jumper | Yes, 1 x 3Pin, Pitch 2.54mm |
| Front I/O | |
| Power Button | 1 |
| LED | 1 x Power LED |
| VGA | 1 |
| USB | 1 x USB 3.0, 3 x USB 2.0 |
| Rear I/O | |
| DC-IN | 1 |
| LED | 1 x Power LED, 1 x HDD LED |
| Ethernet | 4 x Intel I211-AT/I210-AT Gigabit LAN |
| Other | |
| Power Requirements | 12V DC in, 5.5mm/2.5mm |
| Accessories | Cable for HDD |
| Operating Temperature | 0-50 ℃ |
| Max. Data Transfer Rate | SATA 3.0 (6.0Gb/S) |
| OS Support | |
| OS | win dows 7, win dows 10, Linux, pfsense, etc. |
Product Images & Interface
Available CPU Options
J1900: Intel Celeron J1900, Bay Trail, 4 Cores, 4 Threads, 2.0GHz (Turbo up to 2.42GHz), 2M Cache, Intel HD Graphics,TDP:10W.
N2920: Intel Celeron N2920, Bay Trail, 4 Cores, 4 Threads, 1.86GHz (Turbo up to 2.0GHz), 2M Cache, Intel HD Graphics, TDP: 7.5W.
N3540: Intel Pentium N3540, Bay Trail, 4 Cores, 4 Threads, 2.16GHz (Turbo up to 2.66GHz), 2M Cache, Intel HD Graphics, TDP: 7.5W.
-
High-Density Networking: Equipped with 4x Intel I211/I210-AT Gigabit LAN ports, providing stable, high-speed connectivity ideal for complex network routing and security tasks.
-
Low Power Consumption: Powered by the Intel Celeron J1900 processor with a TDP of only 10W, ensuring energy efficiency and reliability for 24/7 continuous operation.
-
Compact & Versatile Form Factor: The 120 x 120mm Mini ITX design allows for easy integration into space-constrained industrial chassis and embedded systems.
-
Rich I/O & Connectivity: Offers flexible expansion with VGA, USB 3.0, and Mini-PCIe, supporting a wide range of peripherals and storage options like SATA 3.0.
-
Multi-OS Compatibility: Fully supports win dows 7, win dows 10, and Linux, giving developers the flexibility to deploy on their preferred software environment.
-
Network Security & Firewalls: Perfectly suited for pfSense, OPNsense, or custom firewall appliances due to its quad Intel LAN ports.
-
Industrial IoT Gateways: Acts as a reliable bridge for data collection and transmission between industrial equipment and the cloud.
-
Edge Computing: Ideal for processing data at the edge of the network in smart factories or automated retail environments.
-
Digital Signage & Kiosks: The dual display output (VGA/HDMI) and low heat profile make it excellent for powering interactive media displays.
-
Soft Routing & VPN Servers: A robust hardware choice for home or small office network management and secure VPN tunneling.
