5x 2.5GbE Firewall Motherboard LAN Pfsense Soft Router
| MOQ: | 1PCS |
| Standard Packaging: | Netural Box |
| Delivery Period: | 2~5 days |
| Payment Method: | T/T,Western Union,Paypal,Credit Card |
| Supply Capacity: | 5000PCS/Month |
5x 2.5GbE Firewall Motherboard
,Pfsense Firewall Motherboard
,mini pfsense 120mm
MB2J513-J4105 Intel J4105 Firewall Motherboard 5x 2.5GbE LAN Pfsense Soft Router
| Description | |
|---|---|
| CPU | Intel Gemini Lake Processor, Celeron J4105/4125/N4000/N4020 |
| Memory | 1 x SO-DIMM DDR4 2133/2400MHz SDRAM, 16GB |
| Dimension | 120 x 120mm |
| Chipset | By CPU |
| Core Number | By CPU |
| Max. Speed | By CPU |
| BIOS | UFFI |
| Lan Chipset | 5 x Intel I225-V/I226-V 2.5 Gigabit LAN |
| Expansion Slot | 1 x Full-length Mini PCIe for 4G |
| 1 x M.2 for Wi-Fi (E key, Type: 2230) 1 x Full-length Mini PCIe for SSD(mSATA) |
|
| GPIO | Yes, 1 x 5Pin, Pitch 2.0mm |
| SIM Slot | 1 |
| AutoStart Jumper | Yes, 1 x 3Pin, Pitch 2.54mm |
| Front I/O | |
| Power Button | 1 x Power Button, 1 x Reset Button |
| LED | 1 x Power LED, 1 x HDD LED |
| USB | 2 x USB 3.0, 2 x USB 2.0 |
| Display | 1 x Connector, HDMI by Default . VGA (Option) |
| Rear I/O | |
| DC-IN | 1 |
| Ethernet | 5 |
| Other | |
| Power Requirements | 12V DC in, 5.5mm/2.5mm |
| Accessories | Cable for HDD |
| Operating Temperature | 0-50 ℃ |
| Max. Data Transfer Rate | SATA 3.0 (6.0Gb/S) |
| OS Support | |
| OS | win dows 10, Linux, pfsense etc. |

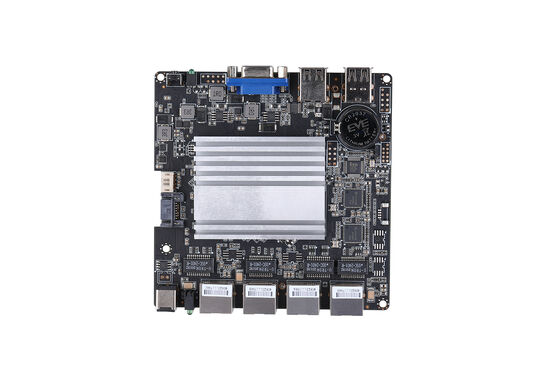

Product Images & Interface
Available CPU Options
-
J4105: Intel Celeron J4105, Gemini Lake, 4 Cores, 4 Threads, 1.5GHz (Turbo up to 2.5GHz), 4M Cache, Intel UHD Graphics 600, TDP: 10W.
-
J4125: Intel Celeron J4125, Gemini Lake Refresh, 4 Cores, 4 Threads, 2.0GHz (Turbo up to 2.7GHz), 4M Cache, Intel UHD Graphics 600, TDP: 10W.
-
N4000: Intel Celeron N4000, Gemini Lake, 2 Cores, 2 Threads, 1.1GHz (Turbo up to 2.6GHz), 4M Cache, Intel UHD Graphics 600, TDP: 6W.
Key Product Advantages
-
High-Speed Connectivity: Equipped with 5x Intel I225-V/I226-V 2.5 Gigabit LAN ports, providing significantly higher bandwidth and lower latency for modern network demands.
-
Efficient Processing Power: Powered by the Intel Celeron J4105 (Quad-Core, up to 2.5GHz) with a low 10W TDP, ensuring a perfect balance between performance and energy efficiency for 24/7 operation.
-
Rich Expansion Capabilities: Features flexible slots including M.2 for Wi-Fi and dual Mini PCIe for 4G LTE and SSD storage, allowing for highly customized hardware configurations.
-
Compact Industrial Design: The 120 x 120mm form factor is ideal for space-constrained embedded systems and specialized network security chassis.
-
Robust Software Compatibility: Fully optimized for leading firewall and routing software such as Pfsense, OPNsense, and other Linux-based networking distributions.
Application Areas
-
Network Security & Firewalls: Serving as the core hardware for enterprise-grade firewalls, VPN gateways, and Intrusion Detection Systems (IDS).
-
Soft Routing & SD-WAN: Ideal for home or small office advanced routing, bandwidth management, and software-defined networking.
-
Industrial Edge Computing: Deployable in industrial environments for data collection and secure edge processing due to its stable, low-power architecture.
-
Cloud Storage & NAS Gateways: Providing high-speed 2.5G network throughput for specialized storage servers and localized data management.
-
Embedded IoT Systems: Supporting smart city infrastructure, remote monitoring hubs, and secure IoT communication gateways.
