USB3.0 Industrial Mini Embedded PC Intel J6412 Fanless 6x COM RS232 RS485
| MOQ: | 1PCS |
| Standard Packaging: | Netural Box |
| Delivery Period: | 2~5 days |
| Payment Method: | T/T,Western Union,Paypal,Credit Card |
| Supply Capacity: | 5000PCS/Month |
USB3.0 Industrial mini embedded pc Intel
,J6412 mini embedded pc
,industrial minipc RoHS
Mi6412C6 Industrial Mini PC Intel J6412 Fanless Embedded PC 6x COM RS232/RS485
| Description | |
| CPU | Intel Celeron J6412, Elkhart Lake, 4 Cores, 4 Threads, 2.0GHz (Turbo up to 2.6GHz), 1.5M L2 Cache, Intel UHD Graphics (16 EUs). |
| CPU TDP | By CPU |
| Memory | 1 x DDR4 SO-DIMM Socket (Up to 32G) |
| Storage | 1 x 2.5-inch HDD/SSD 1 x Mini PCIe for mSATA SSD |
| Chipset | By CPU |
| Graphics | By CPU |
| Audio | Realtek HD Audio |
| Watch Dog | Yes |
| Lan Chipset | 2 x Realtek Gigabit LAN |
| Expansion | 1 x mSATA for SSD |
| 1 x M.2 for 4G/5G (B key, Type: 3042/3052)5G Defaults to PCIe Mode, USB 3.0 Mode Requires Customization 1 x M.2 for Wi-Fi (E key, Type: 2230) |
|
| GPIO | Yes |
| RS-485 | COM1/2 can be set up as RS-485 |
| AutoStart Jumper | Yes |
| Front I/O | |
| Power Button | 1 x Power Button, 1 x Reset Button |
| Serial Port | 2 x RS-232 (COM1/2 can be set up as RS-485) |
| LED | 1 x Power LED, 1 x HDD LED |
| USB | 2 x USB3.0, 1 x Type C (USB 3.0) |
| Rear I/O | |
| Power | 1 x DC Jack |
| Display | 1 x HDMI |
| Phoenix | 1 x 2Pin |
| Serial Port | 4 x RS-232 |
| USB | 4 x USB 2.0 |
| Audio | 1 x Mic-in, 1 x Line-out |
| LAN | 2 x Realtek Gigabit LAN |
| Other | |
| Material | Aluminum Alloy |
| Dimension | 178 x 111 x 52mm |
| Weight | 0.83kg |
| Packaging Dimension | 261 x 218 x 75mm |
| Kensington Lock | No |
| Cooling Mode | Fanless Design |
| Mounting | VESA Mounting Bracket |
| OS Support | |
| OS | UEFI win dows 10, UEFI Linux |
| Environmental | |
| Operting Temp | 0℃~50℃ |
| Non-Operating Temp | -20℃~80℃ |
| Humidity | 10%~90% |
| Packlist | |
| Packing List | 1 x Mini PC,1 x Power supply,1 x Power cord,1 x VESA |

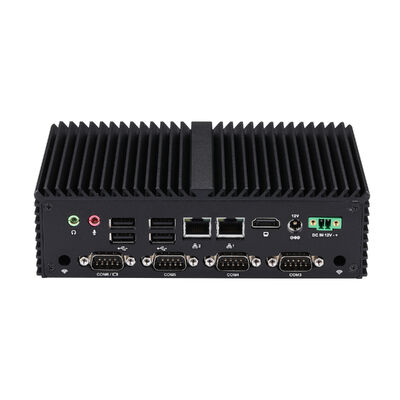

Product Images & Interface
Products Key Advantages
-
Robust Fanless Thermal Design: The aluminum alloy chassis provides silent, passive cooling, ensuring 24/7 stable operation in harsh industrial environments while preventing dust accumulation.
-
Powerful Elkhart Lake Architecture: Driven by the Intel Celeron J6412 Quad-Core processor, it delivers a significant performance boost over previous generations with low power consumption.
-
Extensive Connectivity (6x COM Ports): Equipped with 6x RS-232 serial ports (COM1/2 configurable to RS-485), making it perfectly compatible with legacy industrial equipment and sensors.
-
Flexible Storage & Expansion: Supports high-capacity storage via 2.5-inch SATA and mSATA, alongside a DDR4 SO-DIMM slot supporting up to 32GB of RAM for smooth multitasking.
-
Dual Gigabit Networking: Featuring dual Realtek LAN ports, it offers reliable high-speed data transmission and network redundancy for critical IoT applications.
Application Fields
-
Industrial Automation & Control: Used as a controller for factory production lines, PLC management, and CNC machinery due to its multiple COM ports and rugged design.
-
Smart Retail & Digital Signage: Its compact size and Intel UHD Graphics make it an excellent media player for high-definition advertising displays and interactive kiosks.
-
IoT Gateways & Data Acquisition: Acts as a bridge to collect and process data from various sensors and transmit it to the cloud in real-time.
-
Self-Service Terminals: Powering ATMs, vending machines, and ticketing systems that require high reliability and long-term durability in public spaces.
-
Edge Computing: Ideal for processing data at the "edge" of the network in smart city or security surveillance setups to reduce latency.
