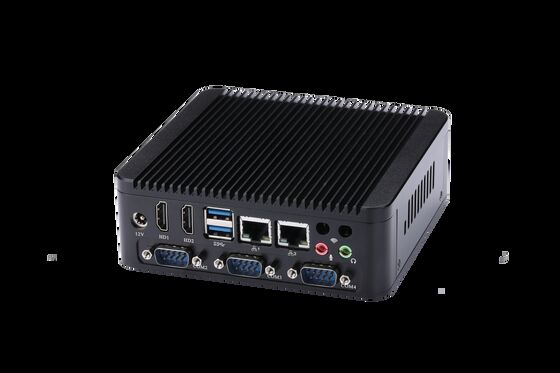

Celeron 3865U Compact Industrial Pc 4 RS232 COM Dual HDMI Mini Industrial Computer
| MOQ: | 1PCS |
| Standard Packaging: | Netural Box |
| Delivery Period: | 2~5 days |
| Payment Method: | T/T,Western Union,Paypal,Credit Card |
| Supply Capacity: | 5000PCS/Month |
Celeron 3865U compact industrial pc
,compact industrial pc 4 RS232
,HDMI mini industrial computer
| Description | |
| CPU | Intel Celeron 3865U, Kaby Lake, 2 Cores, 2 Threads, 1.8GHz, 2M Cache, Intel HD Graphics 610. |
| CPU TDP | By CPU |
| Memory | 1 x DDR4 SO-DIMM Socket (Up to 32G, 2133/2400MHz) |
| Storage | 1 x 2.5-inch HDD/SSD 1 x M.2 Slot for SSD (M key, Type: 2280) |
| Chipset | By CPU |
| Graphics | By CPU |
| Audio | Realtek HD Audio |
| Watch Dog | Yes |
| Lan Chipset | 2 x Realtek Gigabit LAN |
| Expansion | 1 x M.2 for SSD (M key, Type: 2280) |
| 1 x M.2 for Wi-Fi (E key, Type: 2230) | |
| GPIO | Yes |
| RS-485 | 0 |
| AutoStart Jumper | Yes |
| Front I/O | |
| Power Button | 1 |
| Serial Port | 1 x RS-232 |
| LED | 1 x Power LED, 1 x HDD LED |
| USB | 2 x USB 3.0, 2 x USB 2.0 |
| Rear I/O | |
| Power | 1 x DC Jack |
| Video Output | 2 x HDMI |
| Serial Port | 3 x RS-232 |
| USB | 2 x USB 2.0 |
| Audio | 1 x Mic-in, 1 x Line-out |
| LAN | 2 x Realtek Gigabit LAN |
| Other | |
| Material | Aluminum Alloy |
| Dimension | 134 x 127 x 46mm |
| Weight | 0.72kg |
| Packaging Dimension | 261 x 218 x 75mm |
| Kensington Lock | Support |
| Cooling Mode | With Fan |
| Mounting | VESA Mounting Bracket |
| OS Support | |
| OS | win dows 10, Linux win dows 7 (Only for 6th Gen Skylake) |
| Environmental | |
| Operting Temp | 0℃~50℃ |
| Non-Operating Temp | -20℃~80℃ |
| Humidity | 10%~90% |
| Packlist | |
| Packing List | 1 x Mini PC,1 x Power supply,1 x Power cord,1 x VESA |
3865U: Intel Celeron 3865U, Kaby Lake, 2 Cores, 2 Threads, 1.8GHz, 2M Cache, Intel HD Graphics 610.
3965U: Intel Celeron 3965U, Kaby Lake, 2 Cores, 2 Threads, 2.2GHz, 2M Cache, Intel HD Graphics 610.
3867U: Intel Celeron 3867U, Kaby Lake, 2 Cores, 2 Threads, 1.8GHz, 2M Cache, Intel HD Graphics 610.
7100U: Intel Core i3-7100U, Kaby Lake, 2 Cores, 4 Threads, 2.4GHz, 3M Cache, Intel HD Graphics 620.
7200U: Intel Core i5-7200U, Kaby Lake, 2 Cores, 4 Threads, 2.5GHz (Turbo up to 3.1GHz), 3M Cache, Intel HD Graphics 620.
7500U: Intel Core i7-7500U, Kaby Lake, 2 Cores, 4 Threads, 2.7GHz (Turbo up to 3.5GHz), 4M Cache, Intel HD Graphics 620.
Rich Connectivity & Expandability: Equipped with 4 RS-232 COM ports and dual HDMI, making it ideal for connecting multiple legacy industrial devices and dual-display monitoring setups.
Enhanced Cooling for Reliability: Unlike fanless models, the active fan cooling system ensures the Intel Celeron 3865U maintains peak performance and stability in high-temperature or high-load environments.
High-Speed Networking: Dual Realtek Gigabit LAN ports provide high-bandwidth, redundant network connections, essential for firewall, VPN, and industrial gateway applications.
Compact & Versatile Storage: The small form factor (134 x 127 x 46mm) supports both a 2.5-inch HDD/SSD and an M.2 NVMe/SATA SSD, balancing high-speed boot times with large-capacity storage.
Industrial Automation & Control: Perfect for PLC communication, CNC machine control, and factory production line monitoring via its multiple COM ports.
Network Security & Edge Computing: Can be used as a dedicated firewall (pfsense/OpenWrt), VPN server, or local data processing hub for IoT sensors.
Self-Service Terminals & Kiosks: Powering ATMs, vending machines, and digital signage where dual-screen output and constant serial port communication are required.
Smart Transportation: Integrated into traffic management systems, toll collection points, or vehicle-to-infrastructure (V2I) communication hubs.
