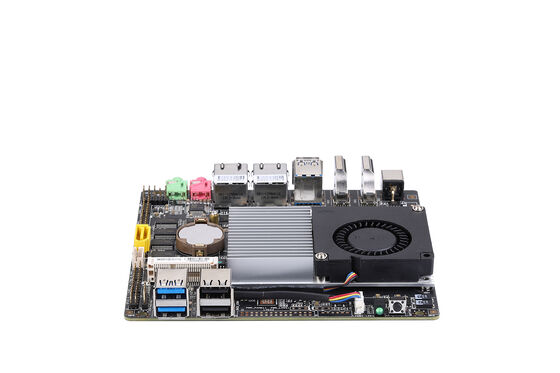

130mm Normal Motherboard Dual Gigabit LAN Embedded Motherboard

130mm Normal Motherboard Dual Gigabit LAN Embedded Motherboard

MOQ: 1PCS
Standard Packaging: Netural Box
Delivery Period: 2~5 days
Payment Method: T/T,Western Union,Paypal,Credit Card
Supply Capacity: 5000PCS/Month
Detail Information
Place of Origin
China
Brand Name
Kettop
Certification
CE,RoHS
Model Number
MB2U246-5005U
Size:
120 X 130mm
CPU:
Intel Core I3-5005U, Broadwell, 2 Cores, 4 Threads, 2.0GHz
BIOS:
UFFI
USB:
4 X USB 3.0, 2 X USB 2.0
Lan:
2 X Realtek Gigabit LAN
OS:
Windows 7, Windows 10, Linux, Pfsense, Etc.
Highlight:

130mm Normal Motherboard

,

Normal Motherboard Dual LAN

,

Gigabit LAN embedded motherboard

Product Description
MB2U246-5005U Core i3-5005U Industrial Motherboard 4*RS232 & Dual LAN
Description
CPU Intel Core i3-5005U, Broadwell, 2 Cores, 4 Threads, 2.0GHz, 3M Cache, Intel HD Graphics 5500, TDP: 15W.
Memory 1 x SO-DIMM DDR3L 1333/1600MHz SDRAM, Up to 8GB
Dimension 120 x 130mm
Chipset By CPU
Core Number By CPU
Max. Speed By CPU
BIOS UEFI
Lan Chipset 2 x Realtek Gigabit LAN
Expansion Slot 1 x Mini PCIe, Half-length Mini PCIe for Wi-Fi, Full-length Mini PCIe for 4G by Default
1 x Full-length Mini PCIe for SSD
1 x M.2 for Wi-Fi (E key, Type: 2230)
Front I/O
Power Button 1
LED 1 x Power LED
USB 2 x USB 3.0, 2 x USB 2.0
Rear I/O
DC-IN 1
USB 2 x USB 3.0
HDMI 2
Ethernet 2
Audio 2 (Mic-in, Line-out)
Other
Power Requirements 12V DC in, 5.5mm/2.5mm
Accessories Cable for HDD, Cable for Serial Port
Operating Temperature 0-50 ℃
Max. Data Transfer Rate SATA 3.0 (6.0Gb/S)
OS Support
OS win dows 7, win dows 10, Linux
Product Images & Interface

130mm Normal Motherboard Dual Gigabit LAN Embedded Motherboard 0

130mm Normal Motherboard Dual Gigabit LAN Embedded Motherboard 1

130mm Normal Motherboard Dual Gigabit LAN Embedded Motherboard 2

130mm Normal Motherboard Dual Gigabit LAN Embedded Motherboard 3

Available CPU Options
  • 2955U: Intel Celeron 2955U, Haswell, 2 Cores, 2 Threads, 1.4GHz, 2M Cache, Intel HD Graphics, TDP: 15W.
  • 4005U: Intel Core i3-4005U, Haswell, 2 Cores, 4 Threads, 1.7GHz, 3M Cache, Intel HD Graphics 4400, TDP: 15W.
  • 4200U: Intel Core i5-4200U, Haswell, 2 Cores, 4 Threads, 1.6GHz (Turbo up to 2.6GHz), 3M Cache, Intel HD Graphics 4400, TDP: 15W.
  • 4500U: Intel Core i7-4500U, Haswell, 2 Cores, 4 Threads, 1.8GHz (Turbo up to 3.0GHz), 4M Cache, Intel HD Graphics 4400, TDP: 15W.
  • 4200Y: Intel Core i5-4200Y, Haswell, 2 Cores, 4 Threads, 1.4GHz (Turbo up to 1.9GHz), 3M Cache, Intel HD Graphics 4200, TDP: 11.5W.
  • 3205U: Intel Celeron 3205U, Broadwell, 2 Cores, 2 Threads, 1.5GHz, 2M Cache, Intel HD Graphics, TDP: 15W.
  • 3215U: Intel Celeron 3215U, Broadwell, 2 Cores, 2 Threads, 1.7GHz, 2M Cache, Intel HD Graphics, TDP: 15W.
  • 5005U: Intel Core i3-5005U, Broadwell, 2 Cores, 4 Threads, 2.0GHz, 3M Cache, Intel HD Graphics 5500, TDP: 15W.
  • 5200U: Intel Core i5-5200U, Broadwell, 2 Cores, 4 Threads, 2.2GHz (Turbo up to 2.7GHz), 3M Cache, Intel HD Graphics 5500, TDP: 15W.
Products Key Advantages
  • Extensive Serial Connectivity: Features 4 x RS232 COM ports, making it an exceptional choice for legacy equipment integration, sensor arrays, and multi-device industrial control.
  • Ultra-Compact Form Factor: Measuring just 120 x 130mm, this board fits into space-constrained embedded enclosures and small-form-factor industrial PCs without sacrificing performance.
  • Efficient Thermal Design: The 15W Low TDP Intel Core i3-5005U processor allows for energy-efficient operation and is ideal for fanless system designs to increase long-term reliability.
  • High-Speed I/O Support: Equipped with 4 x USB 3.0 ports and dual Gigabit LAN, ensuring rapid data transfer and stable network connectivity for real-time monitoring.

Application Fields
  • Industrial Automation: Ideal for PLC (Programmable Logic Controller) integration, robotic arm control, and factory production line monitoring.
  • Self-Service Terminals: Powering ATMs, Kiosks, and Vending Machines that require multiple serial connections for card readers, printers, and scanners.
  • Data Acquisition Systems: Perfect for environmental monitoring or energy management systems that collect data from multiple RS232-based sensors.
  • IoT Gateways: Acts as a reliable bridge between industrial field devices and the cloud, handling data processing and secure transmission.
