6xRS232 1xRS485 Normal Motherboard Dual LAN Mini PC I3 5005U Industrial Motherboard
| MOQ: | 1PCS |
| Standard Packaging: | Netural Box |
| Delivery Period: | 2~5 days |
| Payment Method: | T/T,Western Union,Paypal,Credit Card |
| Supply Capacity: | 5000PCS/Month |
6xRS232 Normal Motherboard
,1xRS485 Normal Motherboard
,i3 ndustrial Motherboard

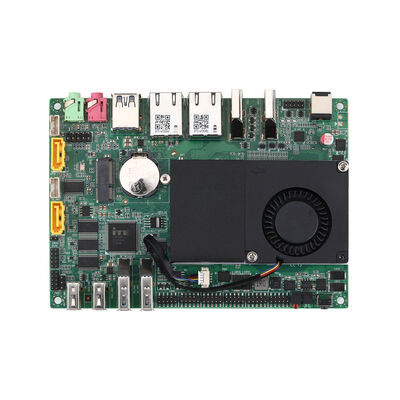

MB3U267-5005U 6xRS232 1xRS485 Dual LAN Mini PC i3-5005U Industrial Motherboard
| Processor System | |
| Dimension | 148 * 104mm |
| CPU | Intel Core i3-5005U, Broadwell, 2 Cores, 4 Threads, 2.0GHz, 3M Cache, Intel HD Graphics 5500. |
| Core Number | By CPU |
| Max. Speed | By CPU |
| L2 Cache | By CPU |
| Chipset | By CPU |
| BIOS | UEFI |
| Expansion Slot | |
| Mini-PCIe | 1 * Mini PCIe, Half-length Mini PCIe for Wi-Fi by Default, Full-length Mini PCIe for 4G |
| mSATA | 1 * Full-length Mini PCIe for SSD |
| M.2 | 1 * M.2 for Wi-Fi (E key, Type: 2230) |
| Memory | |
| Technology | DDR3L 1333/1600MHz SDRAM |
| Max. | 8GB |
| Socket | 1 * SO-DIMM |
| Graphics | |
| Controller | By CPU |
| VRAM | Shared Memory |
| VGA | 1 (Header) |
| HDMI | 2 (Support HDMI 1.4a) |
| Multi Display | Yes |
| Ethernet | |
| Interface | 10/100/1000Mbps |
| Controller | 2 * Realtek Gigabit LAN |
| Connector | 2 * RJ-45 |
| Audio | |
| Controller | Realtek HD Audio |
| SATA | |
| Max. Data Transfer Rate | SATA 3.0 (6.0Gb/S) |
| Accessories | |
| Accessories | Cable for HDD, Cable for Serial Port |
| Real I/O | |
| DC-IN | 1 |
| HDMI | 2 |
| Ethernet | 2 |
| USB | 2 * USB 3.0 |
| Audio | 2 (Mic-in, Line-out) |
| Front I/O | |
| Power Button | 1 |
| LED | 1 * Power LED, 1 * HDD LED |
| USB | 2 * USB 3.0, 2 * USB 2.0 |
| Internal Connector | |
| VGA Header | 1, 2 * 5Pin, Pitch 2.0mm |
| Serial Port | 6, 2 * 5Pin, Pitch 2.0mm |
| RS-485 | 1, COM2 Supports RS-485 |
| SATA | 1 * SATA 3.0 (6.0Gb/S), 1, Only for Core i5/i7 (Option) |
| SATA PWR Connector | 1, 1 * 4Pin, Pitch PH2.0mm |
| SIM Slot | 1 |
| AutoStart Jumper | Yes, 1 * 3Pin, Pitch 2.54mm |
| GPIO Header | 1, 2 * 5Pin, Pitch 2.0mm |
| USB Header | 1, 2 * 5Pin, Pitch 2.54mm |
| Front Panel Header | 1, 2 * 5Pin, Pitch 2.0mm |
| Speakers Header | 1, 2 * 5Pin, Pitch 2.54mm |
| Power Header | 1, 1 * 2Pin, Pitch 2.5mm (Option) |
| Watchdog Timer | |
| Output | From Super I/O to Drag RESETCON# |
| Interval | 256 egments,0,1,2,3,,,255 sec/min |
| Power Requirement | |
| Input PWR | 12V DC in, 5.5mm/2.5mm |
| Environment | |
| Operating Temperature | 0-50 ℃ |
| OS Support | |
| OS | win dows 7, win dows 10, Linux |
Product Images & Interface
Available CPU Options
2955U: Intel Celeron 2955U, Haswell, 2 Cores, 2 Threads, 1.4GHz, 2M Cache, Intel HD Graphics.
4005U: Intel Core i3-4005U, Haswell, 2 Cores, 4 Threads, 1.7GHz, 3M Cache, Intel HD Graphics 4400.
4200U: Intel Core i5-4200U, Haswell, 2 Cores, 4 Threads, 1.6GHz (Turbo up to 2.6GHz), 3M Cache, Intel HD Graphics 4400.
4500U: Intel Core i7-4500U, Haswell, 2 Cores, 4 Threads, 1.8GHz (Turbo up to 3.0GHz), 4M Cache, Intel HD Graphics 4400.
5005U: Intel Core i3-5005U, Broadwell, 2 Cores, 4 Threads, 2.0GHz, 3M Cache, Intel HD Graphics 5500.
5200U: Intel Core i5-5200U, Broadwell, 2 Cores, 4 Threads, 2.2GHz (Turbo up to 2.7GHz), 3M Cache, Intel HD Graphics 5500.
4200Y: Intel Core i5-4200Y, Haswell, 2 Cores, 4 Threads, 1.4GHz (Turbo up to 1.9GHz), 3M Cache, Intel HD Graphics 4200.
3205U: Intel Celeron 3205U, Broadwell, 2 Cores, 2 Threads, 1.5GHz, 2M Cache, Intel HD Graphics.
3215U: Intel Celeron 3215U, Broadwell, 2 Cores, 2 Threads, 1.7GHz, 2M Cache, Intel HD Graphics.
5500U: AMD Ryzen 5 5500U, Lucienne, 6 Cores, 12 Threads, 2.1GHz (Turbo up to 4.0GHz), 8M Cache, AMD Radeon Graphics.
-
Robust Connectivity: Features an impressive array of 7 Serial Ports (6 * RS-232, 1 * RS-485), making it ideal for connecting multiple legacy industrial devices and sensors.
-
Versatile Display Outputs: Supports triple display configurations via 2 * HDMI and 1 * VGA, allowing for complex monitoring setups without needing extra graphics cards.
-
Compact 3.5-inch Form Factor: Measuring just 148 * 104mm, this board fits into space-constrained environments while maintaining high processing power with the Intel Broadwell-U architecture.
-
Flexible Storage & Expansion: Equipped with mSATA, M.2, and SATA 3.0 interfaces, providing multiple options for high-speed SSDs and peripheral expansion.
-
Industrial-Grade Stability: Designed for 24/7 continuous operation with dual Realtek Gigabit LAN for stable and redundant network connectivity.
-
Industrial Automation: Perfect for PLC communication, CNC machine control, and factory floor data acquisition due to its multiple RS-232/485 ports.
-
Self-Service Kiosks & Vending: The compact size and multi-display support make it an excellent engine for ATMs, ticketing machines, and interactive digital signage.
-
IoT Gateways: Functions as a powerful edge computing node that can collect data from various sensors and transmit it via dual high-speed Ethernet.
-
Security & Surveillance: Suitable for NVR (Network Video Recorder) systems that require stable processing and multiple high-speed USB 3.0 connections for cameras.
-
Smart Transportation: Ideal for toll collection systems and traffic monitoring stations where serial port communication and rugged reliability are essential.
