120x120mm Mini Nano ITX Motherboard Intel Pentium J3710 Linux Pfsense
| MOQ: | 1PCS |
| Standard Packaging: | Netural Box |
| Delivery Period: | 2~5 days |
| Payment Method: | T/T,Western Union,Paypal,Credit Card |
| Supply Capacity: | 5000PCS/Month |
120x120mm Nano ITX Motherboard
,Nano ITX Motherboard Linux
,Mini ITX Board pfsense

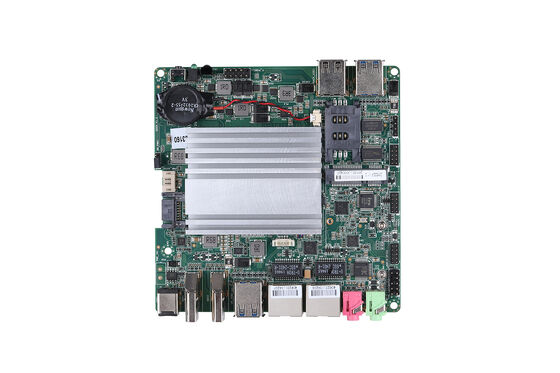

MB2J217-J3710 Mini ITX Board Intel Pentium J3710, Dual LAN, 120x120mm
| Description | |
| CPU | Intel Pentium J3710, Braswell, 4 Cores, 4 Threads, 1.6GHz (Turbo up to 2.64GHz), 2M Cache, Intel HD Graphics 405, TDP: 6.5W. |
| Memory | 1 x DDR3L SO-DIMM Socket(Up to 8G, 1333/1600MHz) |
| Dimension | 120 x 120mm |
| Chipset | By CPU |
| Core Number | By CPU |
| Max. Speed | By CPU |
| BIOS | UFFI |
| Lan Chipset | 2 x Realtek Gigabit LAN |
| Expansion Slot | 1 x Mini PCIe, Full-length Mini PCIe for 4G, Half-length Mini PCIe for Wi-Fi by Default |
| 1 x Full-length Mini PCIe for SSD(mSATA) | |
| GPIO | 1, 2 x 5Pin, Pitch 2.0mm |
| SIM Slot | 1 |
| AutoStart Jumper | Yes, 1 x 3Pin, Pitch 2.54mm |
| Front I/O | |
| Power Button | 1 |
| LED | 1 x Power LED |
| IR | 1 (Option) |
| USB | 2 x USB 3.0, 2 x USB 2.0 |
| Rear I/O | |
| DC-IN | 1 |
| USB | 2 x USB 3.0 |
| HDMI | 2 |
| Audio | 2 (Mic-in, Line-out) |
| Ethernet | 2 x Realtek Gigabit LAN |
| Other | |
| Power Requirements | 12V DC in, 5.5mm/2.5mm |
| Accessories | Cable for HDD, Cable for Serial Port |
| Operating Temperature | 0-50 ℃ |
| Max. Data Transfer Rate | SATA 3.0 (6.0Gb/S) |
| OS Support | |
| OS | win dows 7, win dows 10, Linux, pfsense, etc. |
-
Ultra-Low Power Consumption: Powered by the Intel Pentium J3710 with a TDP of only 6.5W, this board provides quad-core performance while minimizing energy costs and heat generation.
-
Compact & Integrated Design: The 120 x 120mm form factor is smaller than standard Mini-ITX, making it perfect for space-constrained environments and slim chassis designs.
-
Versatile Display Outputs: Features Dual HDMI and VGA support, allowing for multi-screen setups essential for digital signage and monitoring stations.
-
Robust Connectivity: Equipped with Dual Realtek Gigabit LAN and high-speed USB 3.0 ports, ensuring stable, high-speed data transmission for networking applications.
-
Flexible Expandability: Includes mSATA slots, giving you the freedom to expand storage or add wireless modules based on specific project needs.
-
Industrial Automation: Reliable performance and dual LAN make it ideal for PLC controllers, industrial HMIs, and factory automation systems.
-
Digital Signage: With support for multiple displays and 4K-capable Intel HD Graphics 405, it is perfect for advertising players and information kiosks.
-
Network Security Appliances: The dual Gigabit Ethernet ports allow the board to function efficiently as a hardware firewall, VPN gateway, or small-scale server.
-
IoT & Embedded Systems: Its tiny footprint and low thermal output are suitable for smart vending machines, ATMs, and medical equipment.
-
Home/Office Media Centers: A silent, energy-efficient choice for thin clients, NAS storage, or home theater PCs (HTPC).
