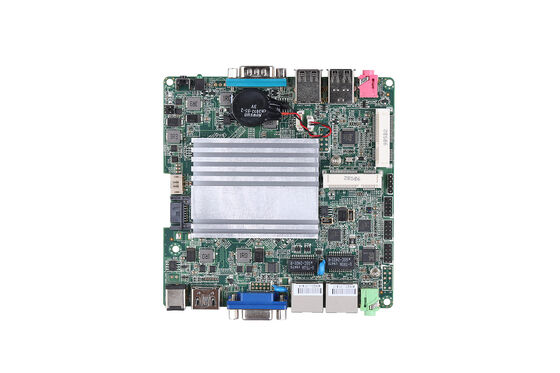

Industrial Mini Nano ITX Motherboard Intel J1900 Motherboard 4 RS232 COM Ports
| MOQ: | 1PCS |
| Standard Packaging: | Netural Box |
| Delivery Period: | 2~5 days |
| Payment Method: | T/T,Western Union,Paypal,Credit Card |
| Supply Capacity: | 5000PCS/Month |
Industrial Nano ITX Motherboard
,Nano ITX Motherboard Intel J1900
,mini itx motherboard intel 120mm
| Description | |
|---|---|
| CPU | Intel Bay trail Processor Celeron J1800, Celeron J1900, Celeron N2920, Celeron N2930, Pentium N3540 |
| Memory | 1 x SO-DIMM DDR3L 1333/1600MHz SDRAM, Max Support to 8G |
| Storage | 1 x Mini-PCIe, 1 x mSATA |
| Chipset | By CPU |
| BIOS | UEFI |
| Dimension | 120 x 120mm |
| Lan Chipset | 2 x Realtek Gigabit LAN |
| Expansion | 1 x Half-length Mini PCIe for Wi-Fi |
| 1 x Full-length Mini PCIe for SSD | |
| GPIO | No |
| RS-485 | 0 |
| AutoStart Jumper | No |
| Rear I/O | |
| DC-IN | 1 |
| VGA | 1 |
| HDMI | 1 |
| Ethernet | 2 |
| Audio | 1 (Line-out) |
| Front I/O | |
| Power Button | 1 |
| LED | 1 x Power LED |
| Serial Port | 1 x RS-232 |
| USB | 1 x USB 3.0, 3 x USB 2.0 |
| Audio | 1 (Mic-in) |
| OS Support | |
| OS | win dows 7, win dows 10, Linux |
| Environmental | |
| Operting Temp | 0℃~50℃ |
| Accessories | Cable for HDD, Cable for Serial Port |
J1900: Intel Celeron J1900, Bay Trail, 4 Cores, 4 Threads, 2.0GHz (Turbo up to 2.42GHz), 2M Cache, Intel HD Graphics,TDP:10W.
N2920: Intel Celeron N2920, Bay Trail, 4 Cores, 4 Threads, 1.86GHz (Turbo up to 2.0GHz), 2M Cache, Intel HD Graphics, TDP: 7.5W.
N3540: Intel Pentium N3540, Bay Trail, 4 Cores, 4 Threads, 2.16GHz (Turbo up to 2.66GHz), 2M Cache, Intel HD Graphics, TDP: 7.5W.
-
Efficient Quad-Core Performance: Powered by the Intel Celeron J1900 (Bay Trail), delivering a balance of multitasking power and a low 10W TDP for energy-efficient, 24/7 operation.
-
Robust Connectivity: Equipped with 4 x RS232 COM ports and Dual Gigabit LAN, making it highly suitable for legacy equipment integration and high-speed networking.
-
Ultra-Compact Form Factor: The 120 x 120mm footprint allows for seamless integration into space-constrained environments like slim kiosks and small-scale industrial controllers.
-
High Versatility: Supports multiple operating systems, including win dows 7, 10, and Linux, ensuring compatibility with both modern and legacy software stacks.
-
Industrial-Grade Reliability: Designed for embedded stability, featuring a DDR3L SO-DIMM socket supporting up to 8GB of RAM for smooth data processing in back-end systems.
-
Self-Service Terminals: Ideal for ATMs, ticketing machines, and digital kiosks that require stable, long-term performance and multiple peripheral connections.
-
Industrial Automation: Used as a controller for factory floor automation, CNC machinery, and monitoring systems thanks to its multiple COM ports.
-
IoT Gateways: Acts as a powerful edge computing node or gateway for data collection and transmission in smart city and industrial IoT environments.
-
Commercial Security: Perfect for NVR (Network Video Recorder) setups or surveillance back-end systems requiring reliable dual networking.
-
Interactive Digital Signage: Drives media displays in retail or public spaces utilizing VGA/HDMI outputs and its compact, hide-away design.
