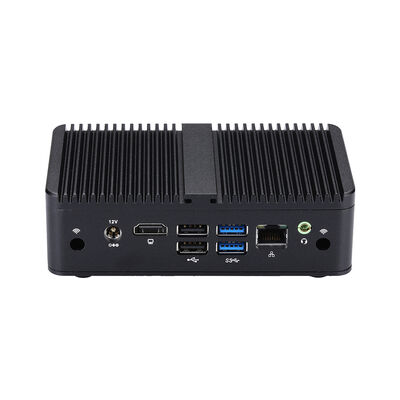

RS232 RS485 Office Mini PC Fanless Compact Industrial PC Intel J4005 Dual
| MOQ: | 1PCS |
| Standard Packaging: | Netural Box |
| Delivery Period: | 2~5 days |
| Payment Method: | T/T,Western Union,Paypal,Credit Card |
| Supply Capacity: | 5000PCS/Month |
RS232 Office Mini PC
,Office Mini PC Intel J4005
,RS485 Compact Industrial PC
| Description | |
| CPU | Intel Celeron J4105, Gemini Lake, 4 Cores, 4 Threads, 1.5GHz (Turbo up to 2.5GHz), 4M Cache, TDP 10W, Intel UHD Graphics 600 |
| CPU TDP | By CPU |
| Memory | 4GB, Integrated (Up to 8G) |
| Storage | 1 x Mini PCIe for mSATA SSD |
| Chipset | By CPU |
| Graphics | By CPU |
| Audio | Realtek HD Audio |
| Watch Dog | Yes |
| Lan Chipset | 1 x Realtek Gigabit LAN |
| Expansion | 1 x Full-length Mini PCIe for SSD |
| 1 x M.2 for Wi-Fi (E key, Type: 2230) | |
| GPIO | 1, 2 x 5Pin, Pitch 2.0mm |
| EDP | 1 |
| Front Audio | 1, 2 x 5Pin, Pitch 2.0mm |
| Front I/O | |
| Power Button | 1 |
| Serial Port | 2 x RS-232 (Support RS-485) |
| LED | 1 x Power LED, 1 x HDD LED |
| Rear I/O | |
| Power | 1 x DC Jack |
| Video Output | 1 x HDMI |
| USB | 2 x USB 2.0, 2 x USB 3.0 |
| Audio | 1 x Mic-in, 1 x Line-out |
| LAN | 1 x Realtek Gigabit LAN |
| Other | |
| Material | Aluminum Alloy |
| Dimension | 136 x 77 x 40mm |
| Weight | 0.41kg |
| Packaging Dimension | 261 x 218 x 75mm |
| Kensington Lock | No |
| Cooling Mode | Fanless Design by Default, Fan-assisted Cooling |
| Mounting | VESA Mounting Bracket |
| OS Support | |
| OS | Win dows 11/10, Linux |
| Environmental | |
| Operting Temp | 0℃~50℃ |
| Non-Operating Temp | -20℃~80℃ |
| Humidity | 10%~90% |
| Packlist | |
| Packing List | 1 x Mini PC,1 x Power supply,1 x Power cord,1 x VESA |
-
Ultra-Compact Industrial Design: Measuring only 136 x 77 x 40mm, the Mi4005C is engineered for space-constrained environments, making it an ideal choice for embedded systems and industrial cabinets.
-
Versatile Dual Serial Communication: Equipped with 2 x RS-232 ports (supporting RS-485), this device provides seamless connectivity for legacy industrial hardware, sensors, and PLC controllers.
-
Efficient Gemini Lake Performance: Powered by the Intel Celeron J4005 processor (up to 2.7GHz), it delivers a perfect balance of low power consumption and reliable 24/7 performance for multitasking.
-
Flexible Expansion Options: Despite its small size, it supports up to 8GB of RAM and features dual storage/module expansion via M.2 and mSATA slots for SSDs and WiFi/Bluetooth connectivity.
-
Fanless & Silent Reliability: The fanless cooling architecture ensures silent operation and prevents dust accumulation, significantly reducing maintenance needs and extending the hardware lifespan in harsh conditions.
-
Rich I/O Connectivity: Includes 4 USB ports, HDMI output, and Realtek Gigabit LAN, providing all the essential interfaces needed for modern industrial and office applications.
