Pentium Gold Intel Industrial Mini PC 5405U Ports 2 Mini Computer Manufacturers
| MOQ: | 1PCS |
| Standard Packaging: | Netural Box |
| Delivery Period: | 2~5 days |
| Payment Method: | Western Union,T/T,Paypal,Credit Card |
| Supply Capacity: | 5000PCS/Month |
Detail Information
Place of Origin
China
Brand Name
Kettop
Certification
CE，RoHS
Model Number
Mi5405C6
Highlight:
Pentium Gold Industrial Mini PC
,Intel Industrial Mini PC 5405U
,Ports 2 mini computer manufacturers
Product Description

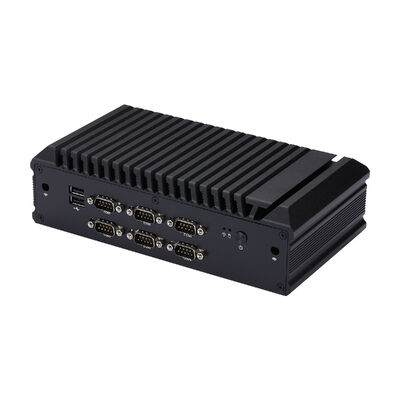

Mini PC Mi5405C6 Industrial Computer
Compact industrial mini PC featuring dual Intel 2.5 Gigabit LAN ports, six RS-232 serial ports, and multiple display outputs including DisplayPort, HDMI, and VGA.
Technical Specifications
| Processor | 5405U: Intel Pentium Gold 5405U, Whiskey Lake, 2 Cores, 4 Threads, 2.3GHz, 2M Cache, Intel UHD Graphics 610 |
| Memory | 1 x DDR4 SO-DIMM Socket (Up to 32GB, 2133/2400MHz) |
| Storage | 1 x 2.5-inch HDD/SSD 1 x M.2 for SSD (M key, Type: 2280) |
| Network | 2 x Intel I225-V/I226-V 2.5 Gigabit LAN |
| Audio | Realtek HD Audio |
| Watch Dog | Yes |
Expansion & Connectivity
- 1 x Mini PCIe (Full-length for 4G, Half-length for Wi-Fi)
- 1 x M.2 for SSD (M key, Type: 2280)
- 1 x M.2 for Wi-Fi (E key, Type: 2230)
- GPIO Support
- 2 x RS-485 (COM1/2 configurable, Support 5V/12V)
- AutoStart Jumper
Front Panel I/O
- 1 x Power Button
- 6 x RS-232 Serial Ports (COM1/2 configurable as RS-485)
- 1 x Power LED, 1 x HDD LED
- 2 x USB 2.0 Ports
Rear Panel I/O
- 1 x DC Power Jack
- Video Output: 1 x DisplayPort, 1 x HDMI, 1 x VGA
- 1 x PS/2 (Mouse or Keyboard)
- 4 x USB 3.0, 2 x USB 2.0
- Audio: 1 x Mic-in, 1 x Line-out
- 2 x Intel 2.5 Gigabit LAN Ports
Physical Characteristics
| Material | Aluminum Alloy |
| Dimensions | 221 x 121 x 62mm |
| Weight | 1.4kg |
| Packaging Dimensions | 285 x 260 x 93mm |
| Cooling | Fanless Design |
| Mounting | VESA Mounting Bracket |
Operating System Support
win dows 10, Linux
Environmental Specifications
| Operating Temperature | 0°C to 50°C |
| Non-Operating Temperature | -20°C to 80°C |
| Humidity | 10% to 90% |
Package Contents
1 x Mini PC, 1 x Power Supply, 1 x Power Cord, 1 x VESA Mount
